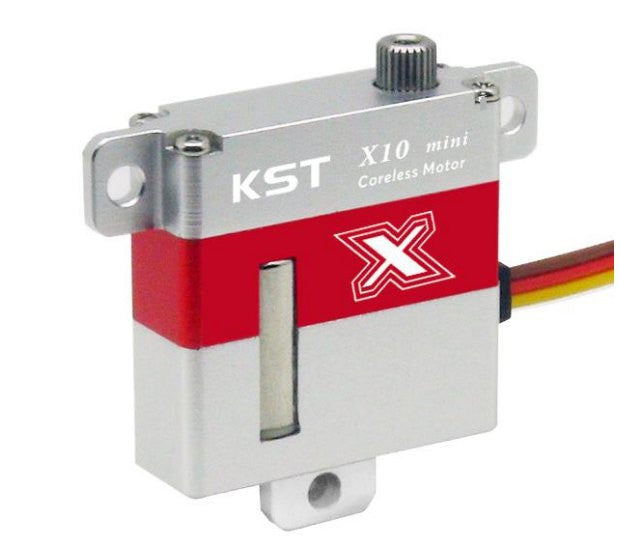

Large selection X10 Mini V8.0 HV- Steel Gears, High Voltage High Torque Wing Servo

X10 Mini  HV- Steel Gears, High Voltage High Torque Wing Servo

V8.0

• Wider operating voltage
• Soft Start

The X10 is a revised version of the 135MG servo, featuring a more durable 7075 aluminum case and improved electronics with a coreless motor. Gears are hardened steel and have little to no free play. Torque and speed figures are greatly increased over the 135MG servo. Finally we now have a 135 sized servo from KST that is capable of operation on 2s power.

Operation Voltage(rated) DC7.4V
Operation Voltage Range DC4.8V-8.4V

Torque

• [email protected]
• [email protected]
• [email protected]
• [email protected]

Speed

• 0.16sec/60°@4.8V
• 0.13sec/60°@6.0V
• 0.11sec/60°@7.4V
• 0.09sec/60°@8.4V

Travel Angle ±50°when 1000-2000us
Operating Temperature Range -20℃……+65℃

Case Material Aluminum Alloy
Motor Type Coreless
Gear Set Material Hardened Steel
Position Sensor Potentionmeter

Dimensions 30*10*30mm

Weight 23g

Case Material Aluminum Alloy
Motor Type Coreless
Gear Set Hardened Steel
Position Sensor Potentionmeter
Position Feedback Optional
Shielded Connecting Cable 26AWG
Case Dimensions 30*10*35.5mm Weight 28g
