Helpful RG012BX Micro Xbus Receiver and CV4L PWM converter

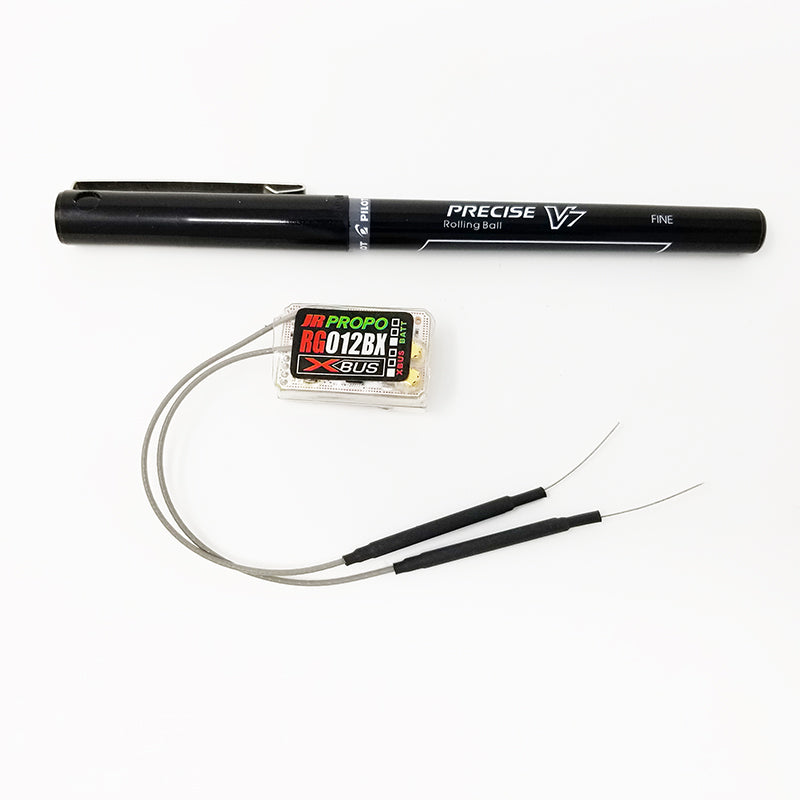

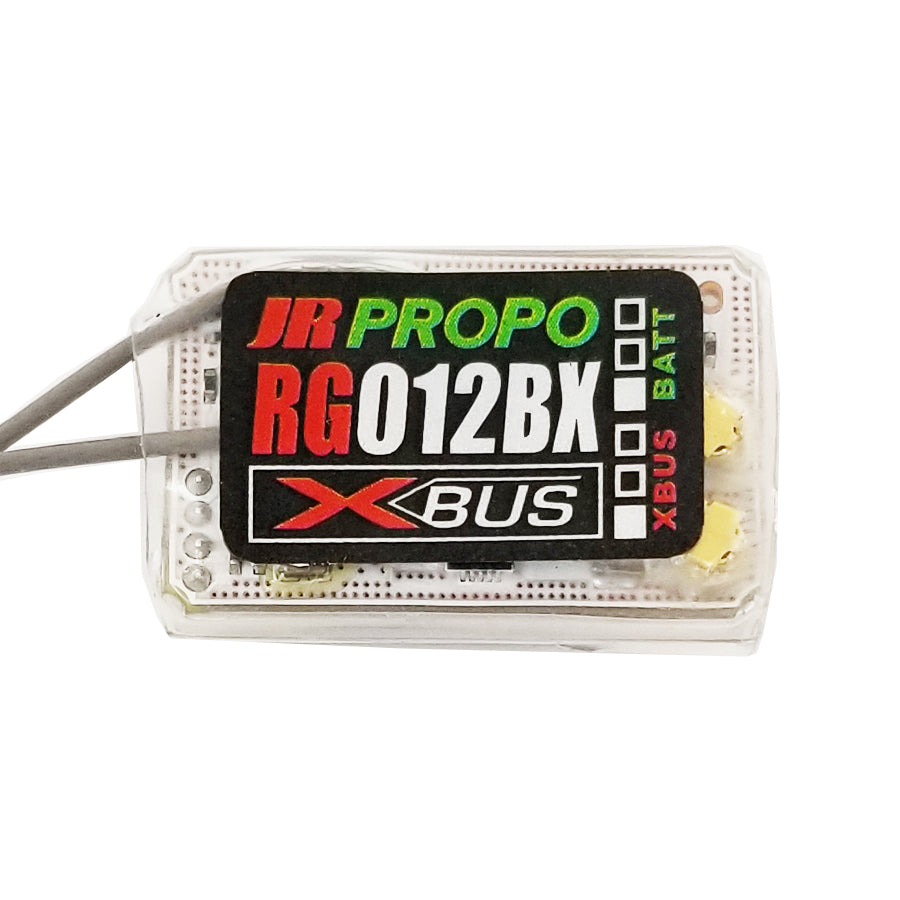

RG012BX Micro Xbus Receiver

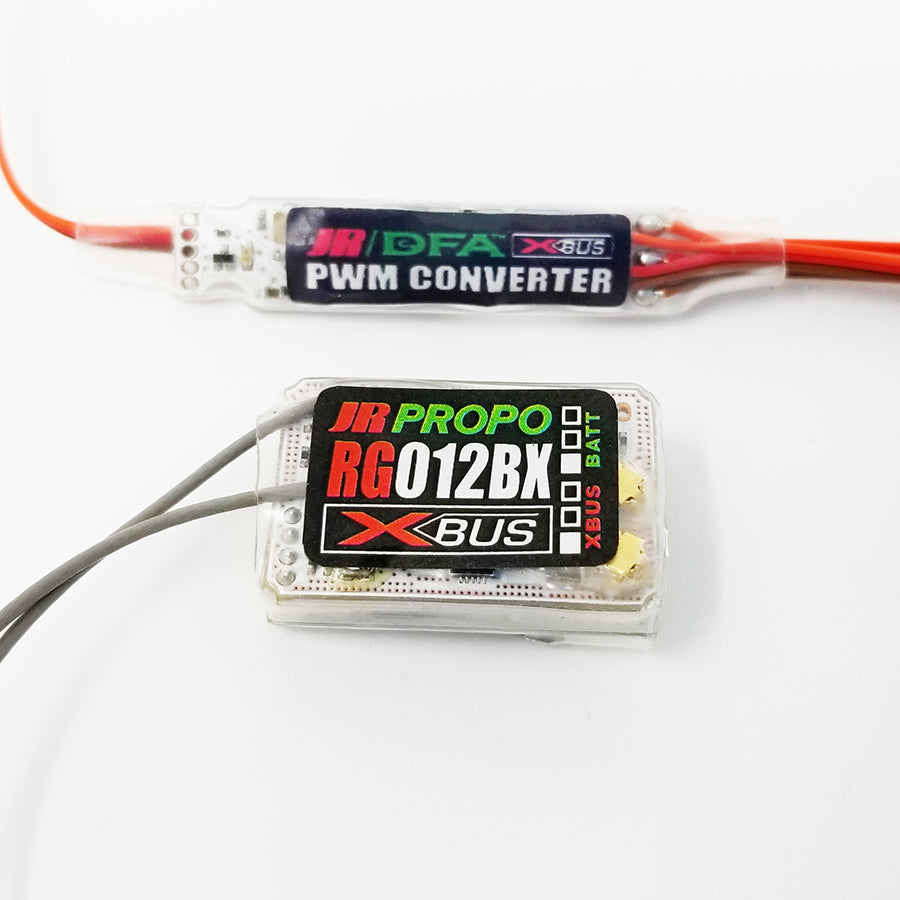

The RG012BX is a micro full range receiver from JR. It has no PWM outputs and only supports Xbus. Supplied with the receiver is the CV4L 4 way PWM converter. The converter allows you to use standard non xbus servos with the receiver. Please not the CV4L has thin gauge wire and is designed to be used with hand launch models or other low current draw applications. You can also use any of the other PWM converters offered by JR.

RG012BX SPECIFICATIONS

• Type: full-range
• Channel Count: Infinite
• Modulation: DMSS
• Band: 2.4Ghz
• Length: 29mm
• Width: 18mm
• Height: 12mm
• Weight: 6g
• Input Voltage: 4.0–8.5V
• Case Type: shrink wrap
• Antenna Length: 150mm

CV4L SPECIFICATIONS

• Type: 4 servo converter
• Length: 42mm
• Width: 9.3mm
• Height: 6mm
• Weight: 5g
• Input Voltage: 4.0–8.5V
• Case Type: shrink wrap
• Output wire Length: 140mm
• Input wire Length: 150mm
