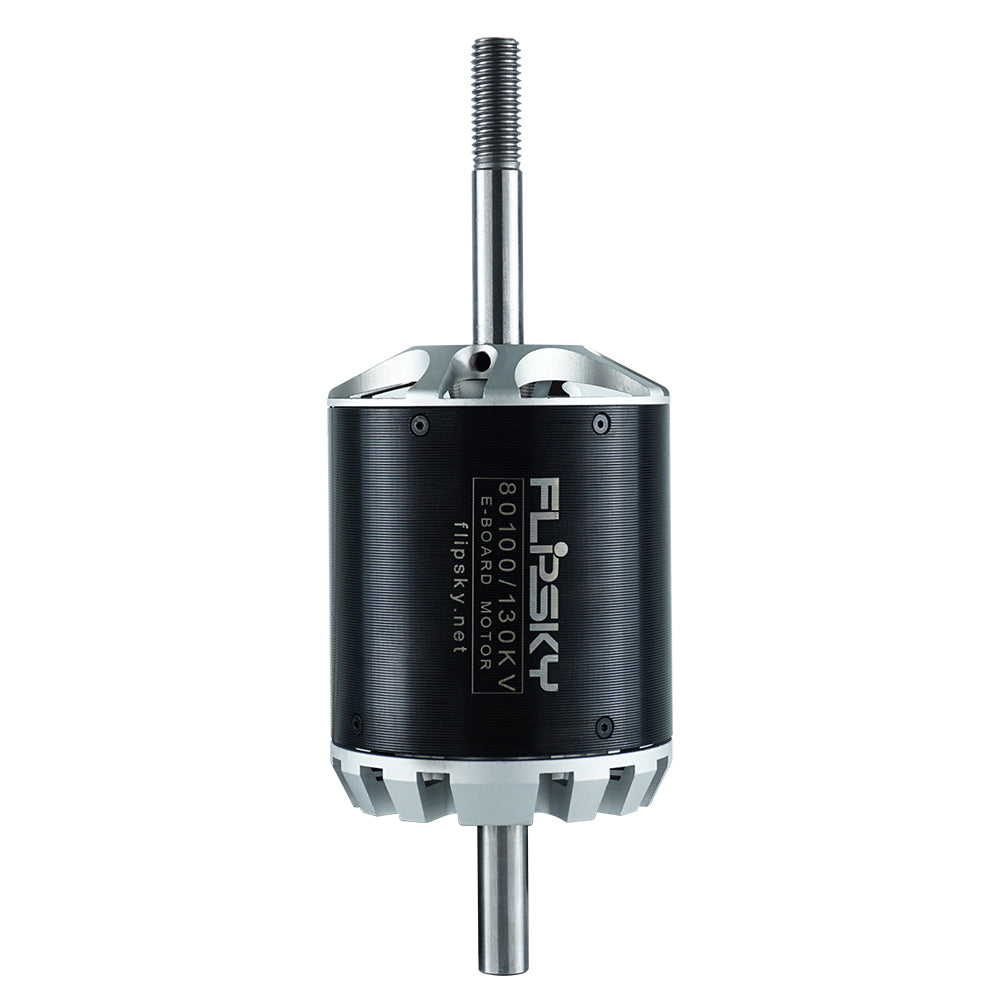

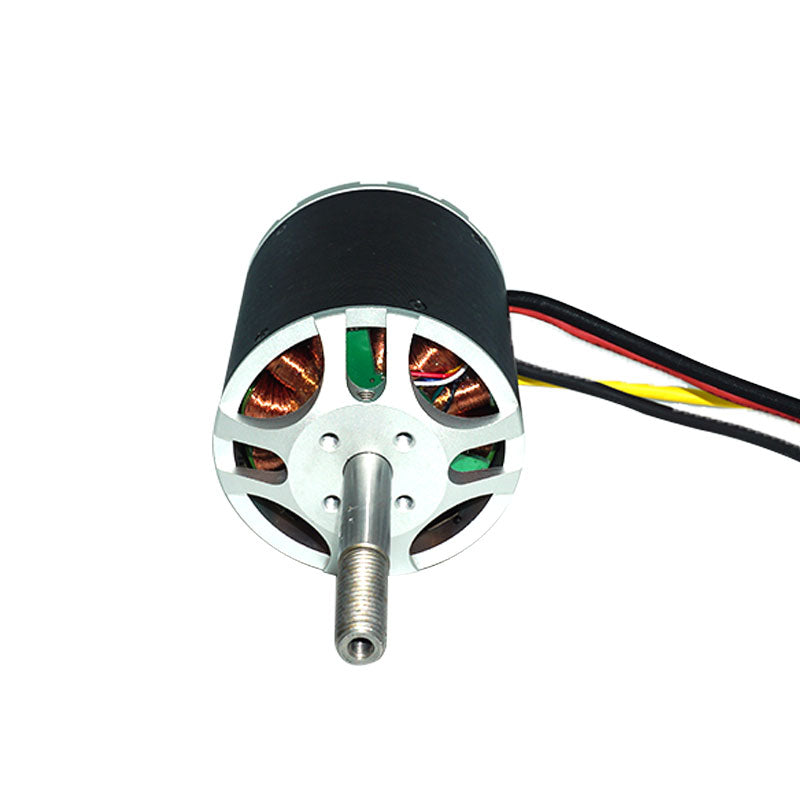

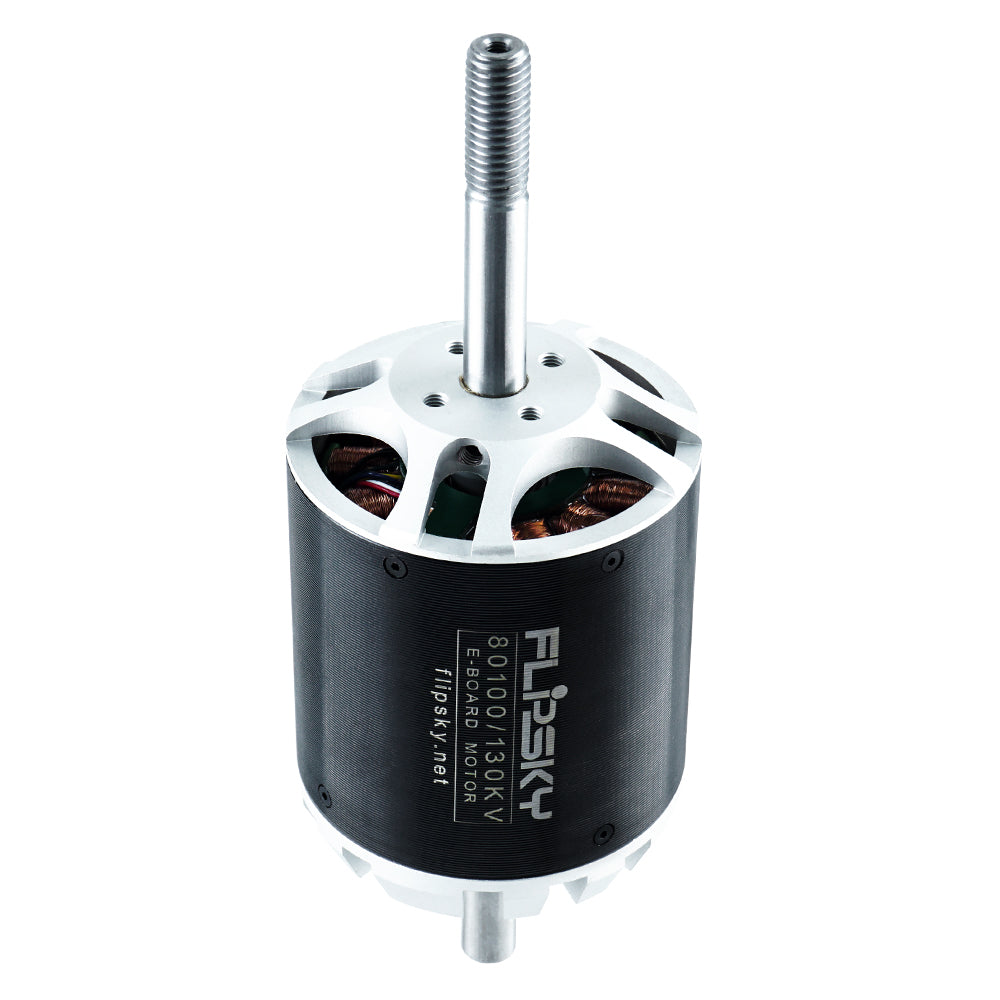

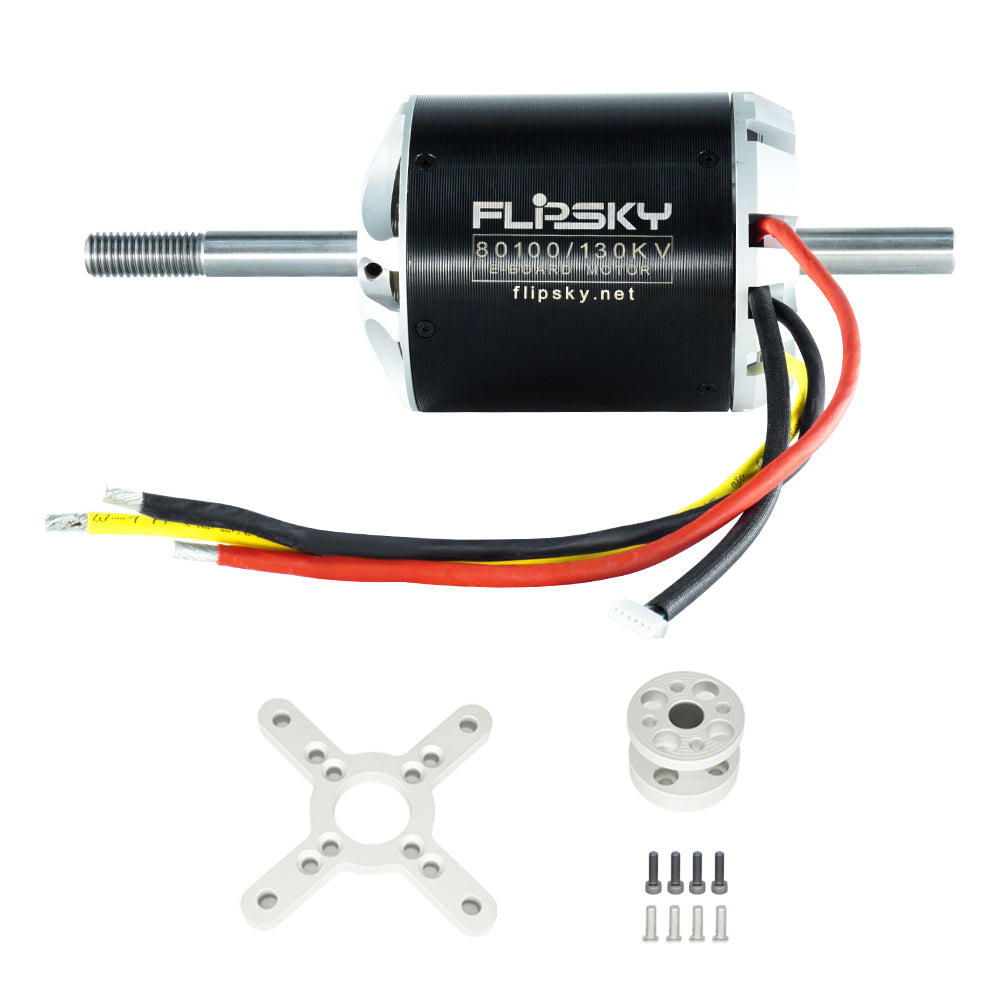

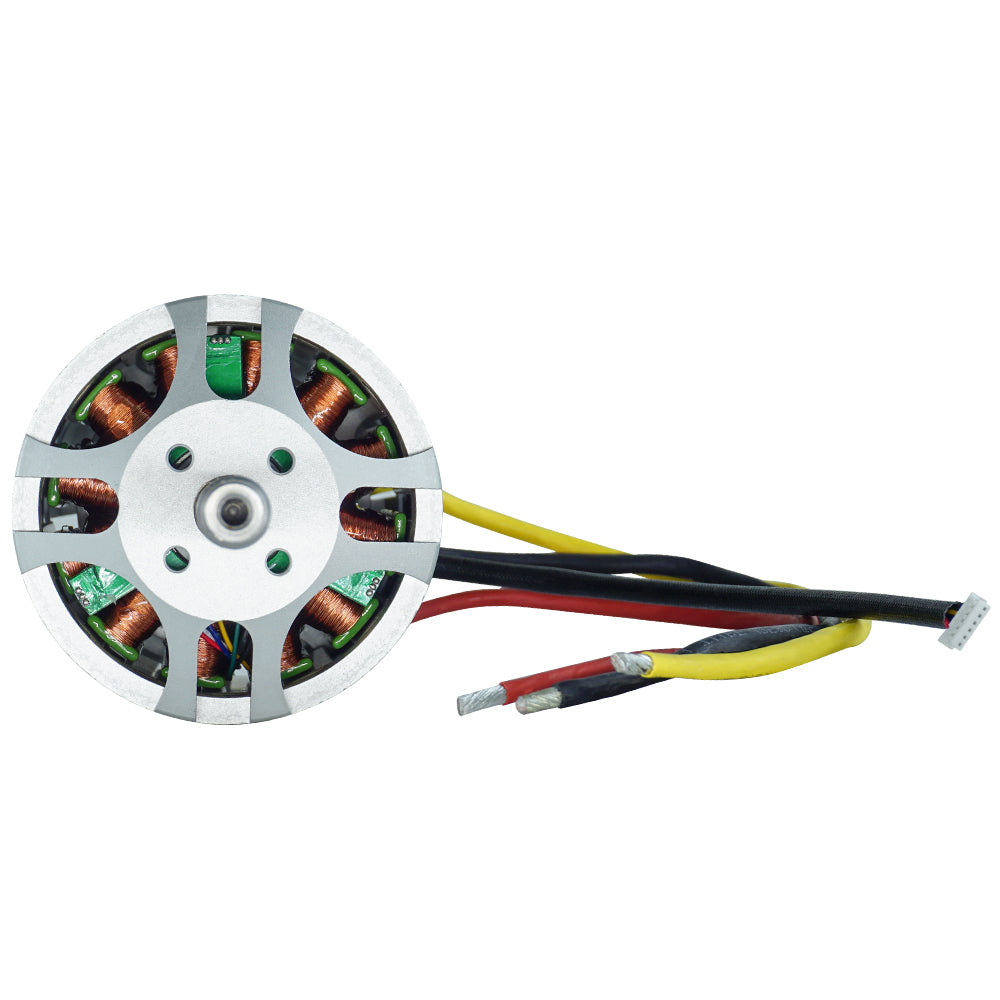

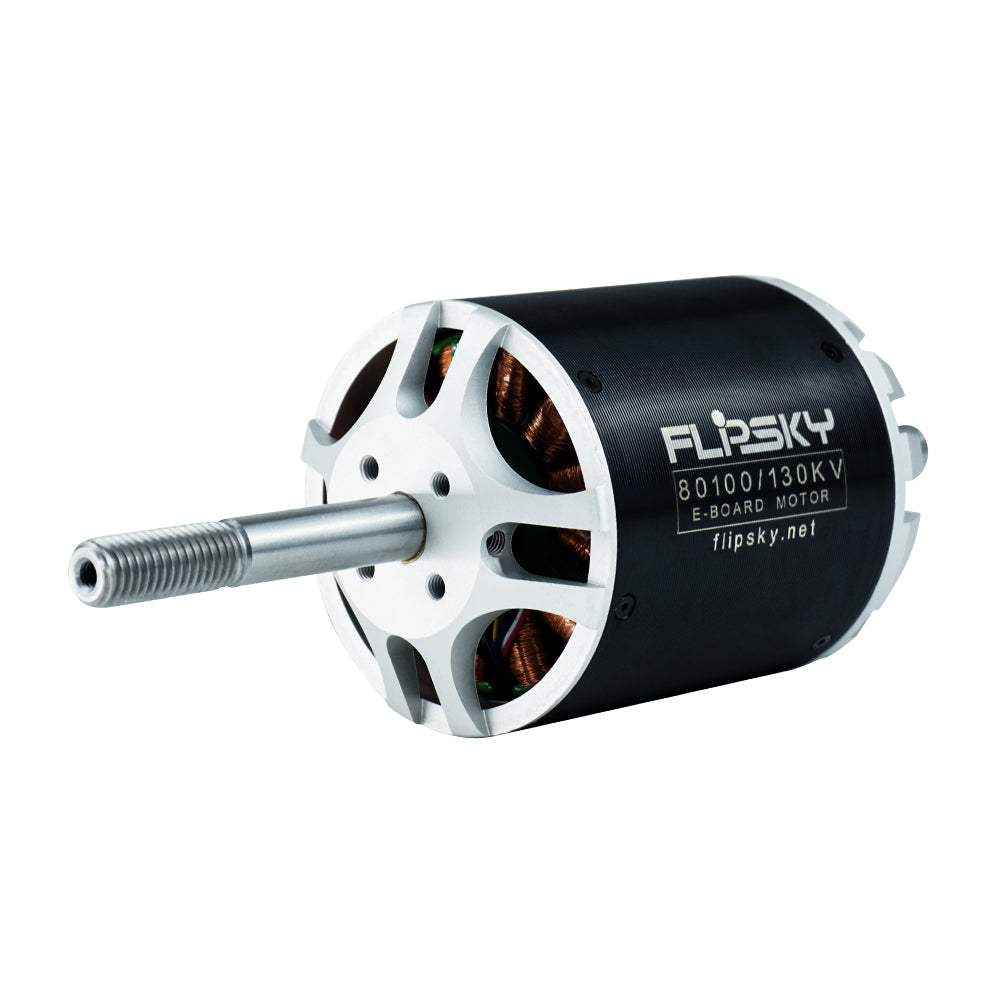

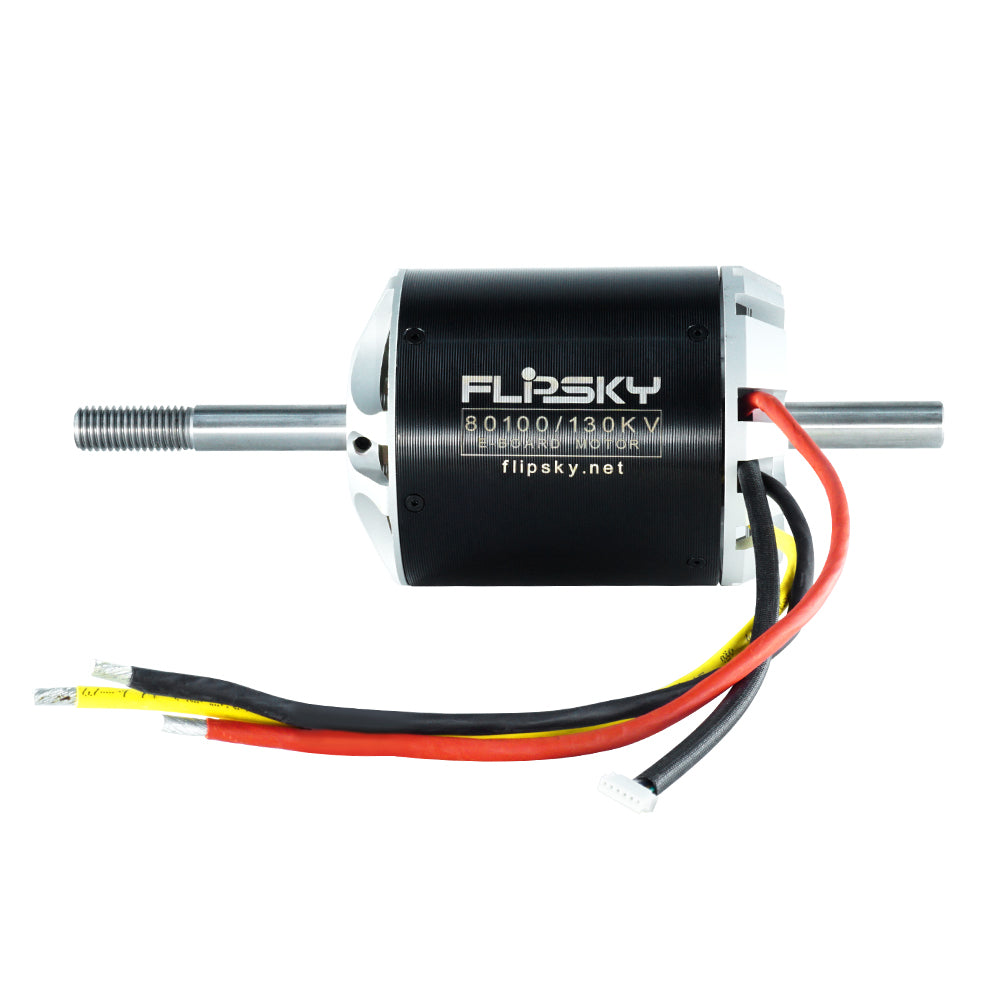

Great deal Brushless DC motor 80100 130KV 7000W for Electric Bike | Electric Skateboard | Go cart

Product Spec

• Max Power: 7000Watts
• Max Current: 148Amps
• Max Volts: 14S
• Max Torque: 17Nm
• The number of pole:14 / 7 pairs
• Recommend ESC: 6-14S 200A
• Weight: 3.96 lb / 1.82kg
• The motor length:107mm
• The motor diameter:80mm
• SHAFT: Diameter 12mm
• Thread size of shaft: M12
• Sensor: yes
• Max RPM: 8500 rpm (not to exceed 9500 rpm)

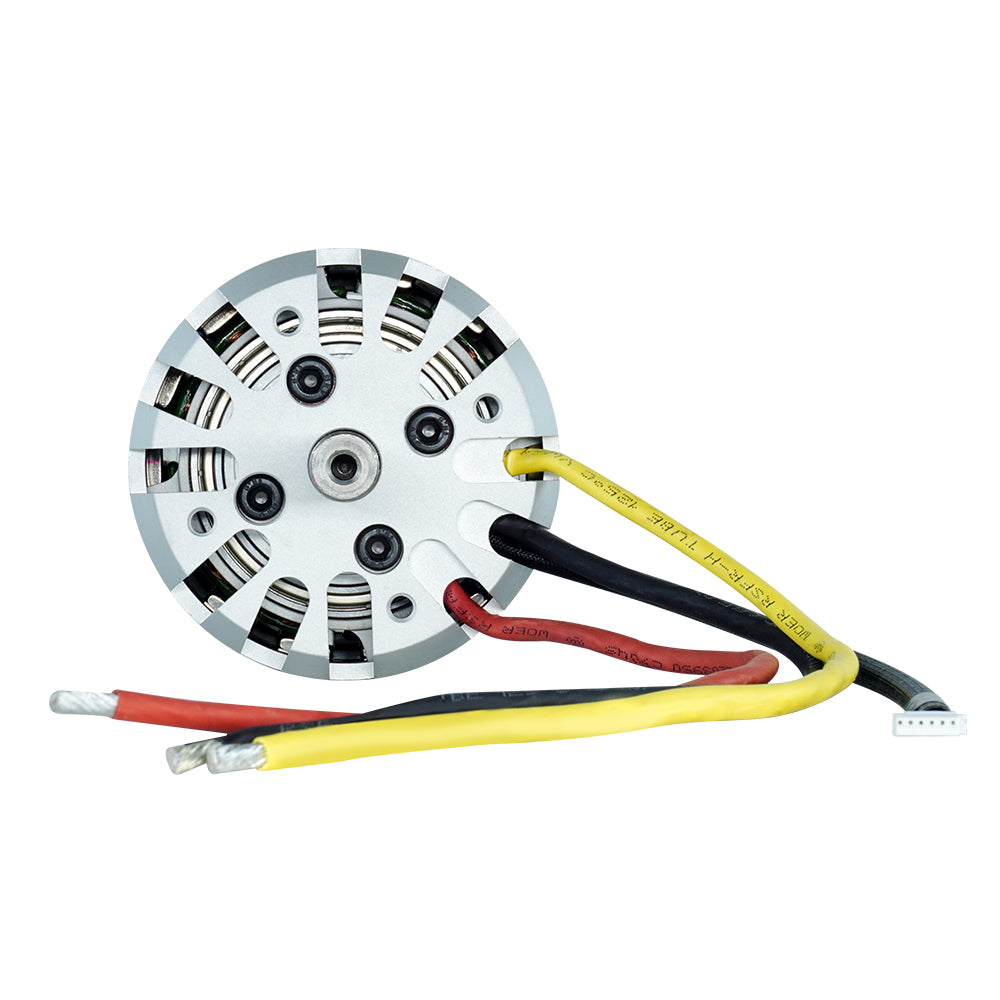

• Yellow,black,red line length:25.3cm
• Hall line lenght:28.4cm
• Signal line JST ZH1.5-6P, phase line without terminal

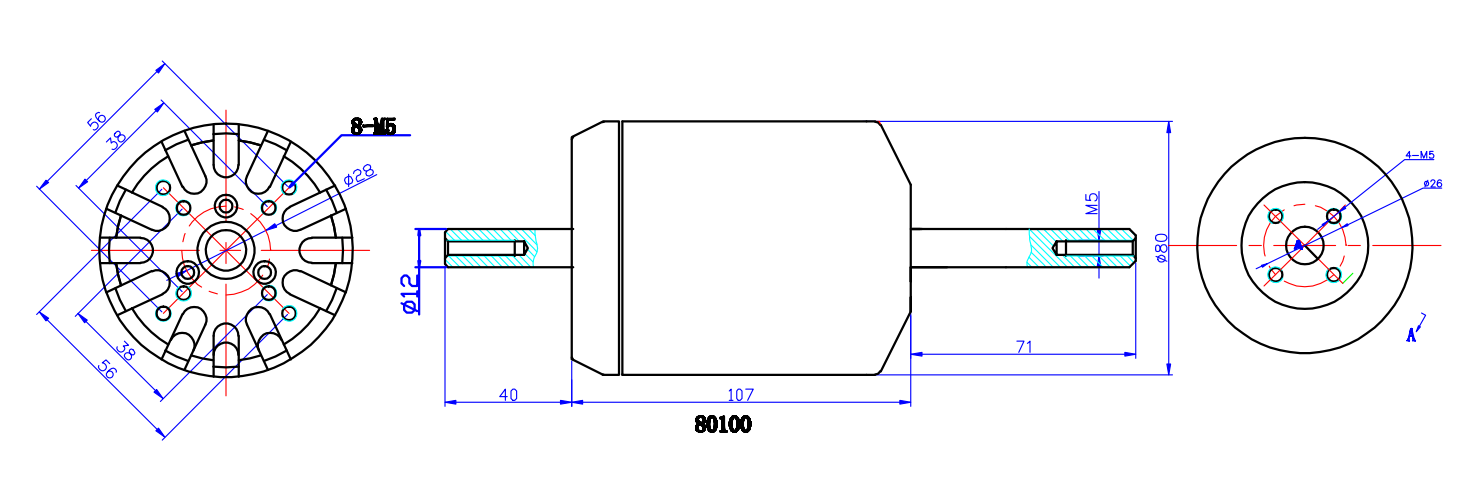

Diagram:
